产品详细介绍:

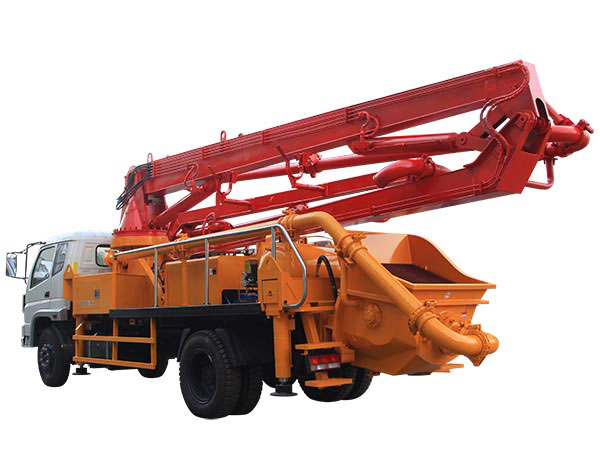

科尼乐集团针对农村市场需求而研制的21米泵车成功下线，这标志着科尼乐集团在农村这个新兴市场的争夺战中又多了一件“利器”。

     科尼乐集团通过大量的市场调研发现，本地建筑高度普遍较低，市场对22米泵车的需求较大。而且高层泵车的价格昂贵，对于农民朋友的购买力是一个障碍。

    为此，科尼乐集团集中科研力量，以人性化的设计理念研制出此款在国内独一无二的性价比极高的21米泵车，填补了国内市场21米泵车的空白。三节臂Z型臂架系统，能快速打开与折叠，适应更狭小的施工环境。其液压系统采用开式系统，在控制成本的同时能保证很好的泵送效果，最大理论泵送方量为30m3/h，最大理论出口压力达到7 MPa。手动控制和遥控器控制相结合的控制方式，能适应各种复杂的工作环境。

    此泵车最大的特点在于带独立的动力系统，能为泵送提供强劲的动力。该泵送系统、臂架控制系统与行走底盘完全无关，即使底盘出现故障，泵车照样可以展臂泵送。

泵送系统  最大理论输送量（m3/h）                                      20

混凝土最大出口压力（Mpa）                                             8

额定工作压力（Mpa）                                                   26

泵送频率（/min）                                                      14-20

料斗容积（L)                                                                                                                    700

液压系统形式                                                                                                                    开式

分配阀形式                                                                                                                         S

混凝土缸径×行程（mm）                                                200*1000

液压油冷却  风冷

塌落度（mm）                                                         80-220

最大骨料尺寸（mm）                                                   50mm

臂架及结构形式  结构形式                                                                                               3RZ

最大布料高度（m）                                                     21.1

最大水平长度（m）                                                      17

最大布料深度（m）                                                     10.5

回转角度                                                                                                                              任意

臂节数量                                                                                                                               3

臂节长度（mm）                                                       8872/7960/1960

展臂角度                                                                                                                               90°/180°/265°

输送管直径（mm）                                                     125

末端软管长度（mm）                                                   300

支腿跨距（前×后×纵向）（mm）                                         4600/2250/5500

驱动方式                                                                                                                               4×2

轴距（mm）                                                            5600

发动机最大功率（Kw/(r/min））                                           55/2200

燃油箱容积（L）                                                        600

整车质量（kg）                                                         18000

整车外形尺寸（长×宽×高）（mm）                                       7000*2500*348

混凝土管清洗方式                                                                                                             水洗/干洗

控制方式                                                                                                                             手动*遥控
